當前位置：首頁 >> >>Special fluorine regulating valveSummary

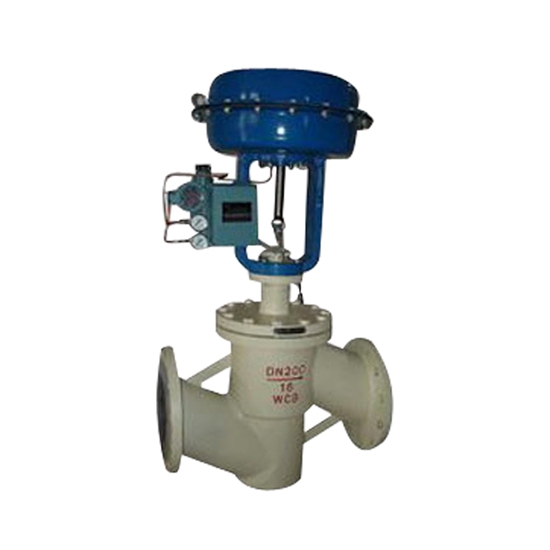

ZMAPF pneumatic membrane lining PTFE valve, ZJHPF pneumatic PTFE membrane lining a single seat control valve is a kind of anti corrosion through single seat control valve, body wall components in contact with the fluid and valve are high-pressure injection molding process, lined with corrosion resistance, aging resistance of the fluorinated ethylene propylene (F46), and the use of PTFE ethylene bellows seal. Control is widely used in acid, alkali and other strong corrosive media and toxic, volatile gas, liquid.
Characteristic.
1, corrosion resistance. Almost all capability of medium (including concentrated nitric acid and aqua regia) of corrosion.
2, good sealing performance. The corrugated pipe and packing a double seal, ensure no leakage.
3, a small amount of leakage. Because the valve core, valve seat with the soft sealing, to ensure no leakage.
4, with HA actuators, large output force, compact structure.
Materials of main parts:
The valve body, valve cover: HT200, ZG230-450, ZGlCr18Ni9Ti
The valve, valve seat: 1Cr18Ni9T, division of titanium alloy welding
Soft seal spool: PTFE
Packing: PTFE, graphite, stainless steel bellows
Gasket: gasket asbestos rubber plate, 1Cr18Ni9Ti, graphite spiral wound
Film cover: A3
Corrugated diaphragm: nitrile rubber reinforcing polyester fabric
Spring: 60Si2Mn
Valve rod, push rod: 2Cr13, 1Cr18Ni9Ti
Main technical parameters：
Nominal diameter | G3/4" | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | ||||||||||||||||||
Seat diameter | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15 | 20 | 26 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | ||||||||||
| KvValue | 0.08 | 0.12 | 0.20 | 0.32 | 0.50 | 0.80 | 1.2 | 2.0 | 3.2 | 5.0 | 8 | 12 | 20 | 32 | 50 | 70 | 100 | 240 | ||||||||||
| Rated stroke | 10 | 16 | 25 | 40 | 60 | |||||||||||||||||||||||
| Supply pressure | Spring range | To allow pressure | ||||||||||||||||||||||||||
| Nominal diameter | ||||||||||||||||||||||||||||
| G3/4" | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | |||||||||||||||||||
| 1.4 | 0.2～1.0 | 16 | 16 | 8 | 5 | 5 | 3 | 2.5 | 2 | 1.2 | 0.8 | |||||||||||||||||
| 4.0 | 0.8～2.4 | 16 | 16 | 16 | 12 | 11 | 7 | 6.5 | 4.5 | 2.8 | 2.0 | |||||||||||||||||
Size and shape
| Nominal diameter | G3/4" | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 |
| L | 116 | 180 | 185 | 200 | 220 | 250 | 275 | 300 | 350 | 480 |
| A | 267 | 267 | 267 | 267 | 267 | 267 | 350 | 350 | 350 | 470 |
| H | 401 | 445 | 485 | 495 | 523 | 532 | 697 | 699 | 699 | 817 |
| H1 | 50 | 65 | 70 | 80 | 71 | 88 | 102 | 140 | 170 | 190 |
Ordering instructions: the type and name of 1 products of 2 nominal diameter (DN) of 3 nominal pressure (PN) 4 of the rated flow coefficient KV 5 body and valve assembly 6 is fixed material flow characteristics of 7 suitable temperature and medium 8 machine mode of action (power, power off) and the input signal of 9 is with accessories (operator the servo amplifier, etc.) 10 other special requirements
